[React Native] Splash Image



dev-yakuza.posstree.com/ko/react-native/react-native-splash-screen/

App Splash 스크린

github.com/crazycodeboy/react-native-splash-screen

crazycodeboy/react-native-splash-screen

npm install --save react-native-splash-screen

1.

-Android

None

-iOS

cd ios
pod install
cd ../



2.

-Android MainActivity.java (android/app/src/main/java/[Your]/[Package]/[Name])

package com.s_archive.lotto;

import android.os.Bundle;//Add Here
import com.facebook.react.ReactActivity;
import org.devio.rn.splashscreen.SplashScreen;//Add Here

public class MainActivity extends ReactActivity {

  //Add Here if not Exist onCreate
  @Override
    protected void onCreate(Bundle savedInstanceState) {
        SplashScreen.show(this);  // here
        super.onCreate(savedInstanceState);
    }
  //to Here

  //...other codes
  /**
   * Returns the name of the main component registered from JavaScript. This is used to schedule
   * rendering of the component.
   */
  @Override
  protected String getMainComponentName() {
    return "lotto";
  }
}

-iOS AppDelegate.m (ios/[ProjectName])

#import "AppDelegate.h"

#import <React/RCTBridge.h>
#import <React/RCTBundleURLProvider.h>
#import <React/RCTRootView.h>
#import "RNSplashScreen.h" //here

//..other code

@implementation AppDelegate

- (BOOL)application:(UIApplication *)application didFinishLaunchingWithOptions:(NSDictionary *)launchOptions
{
    // ...other code

    [RNSplashScreen show];  // here
    // or
    //[RNSplashScreen showSplash:@"LaunchScreen" inRootView:rootView];
    return YES;
}

@end



3.

-Android Create launch_screen.xml (android/app/src/main/res/layout)

(create the layout-folder if it doesn't exist)

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="#f78e00"
    android:orientation="vertical">
    <!--  android:background equal to your image background  -->
    <ImageView
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:scaleType="fitCenter"
        android:src="@drawable/launch_screen" />
</RelativeLayout>



***Tip***

get color Hex Code from image file from web service

imagecolorpicker.com/

Image Color Picker



Input launch_screen.png

set Icon Type to Launcher Icons

stackoverflow.com/questions/42077596/adding-image-asset-but-the-image-is-coming-out-blank

(Notice. set Name launch_screen)

• drawable-ldpi
• drawable-mdpi
• drawable-hdpi
• drawable-xhdpi
• drawable-xxhdpi
• drawable-xxxhdpi

크기 순서 l<m<h<xh<xxh<xxxh 모두 같은 파일명(launch_screen.png)로 해야한다.

(android/app/src/main/res/drawable-hdpi/launch_screen.png)

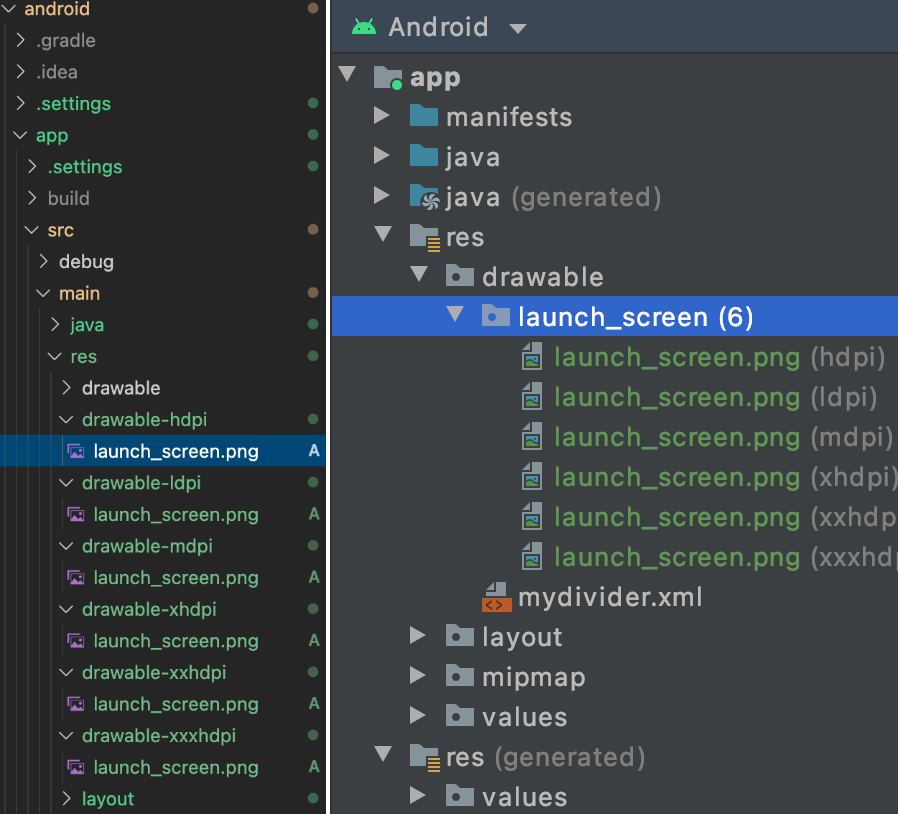

VSCode & Android Studio

4

-JS

import React, { useEffect } from 'react';
import SplashScreen from 'react-native-splash-screen'

export default function App(){
    useEffect(()=>{
    	//anyWhere you want
    	SplashScreen.hide();
    },[])
}
